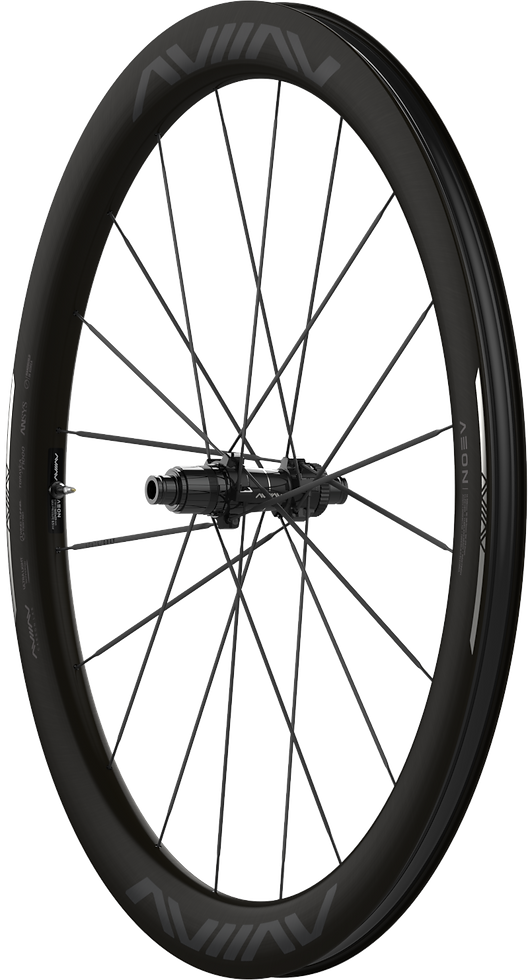

1.14kg
from
(50mm/SET/TU/XDR)

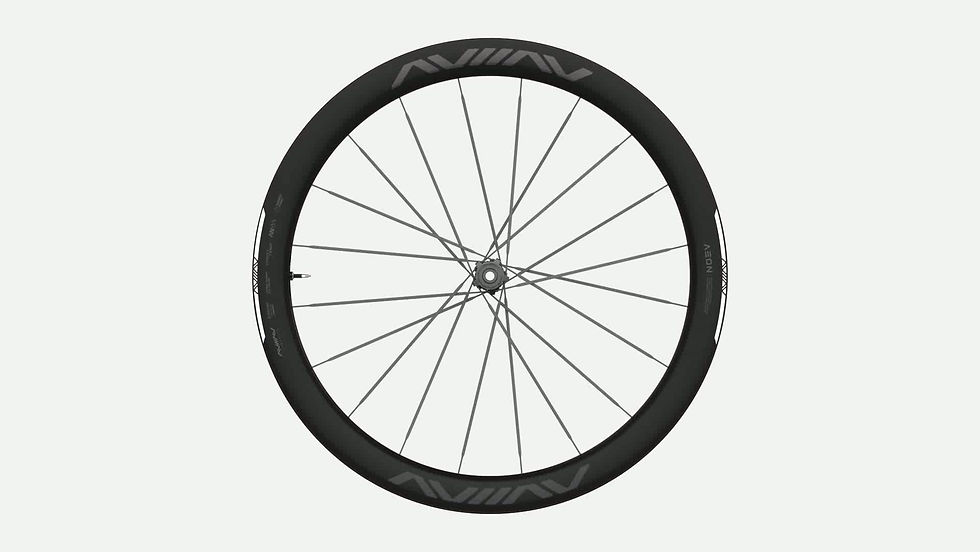

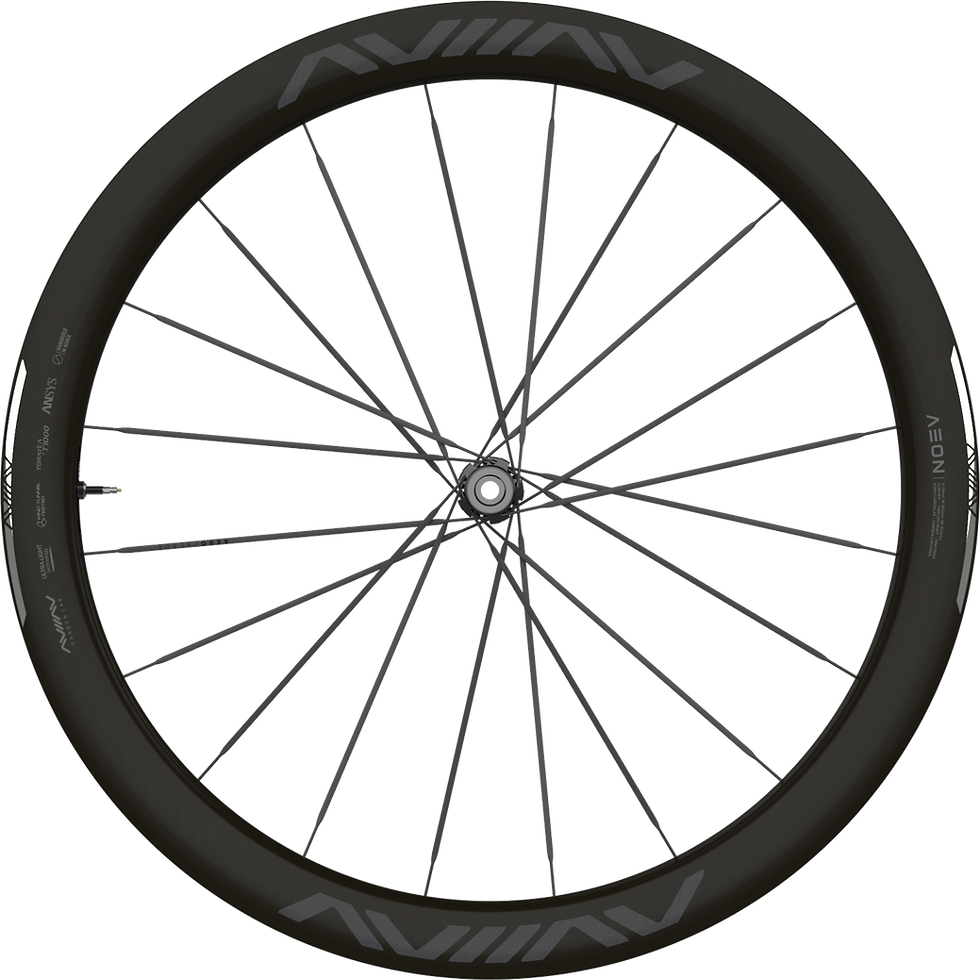

AVIIAV AEON is a incredibly light weight carbon wheels. Rims that made by special technology of AVIIAV, Replacable carbon spokes with excellent elasticity and high-performance CRS hub system, you can achieve amazing records in any race.
CFD simulated shape
MAIN
CONCEPT

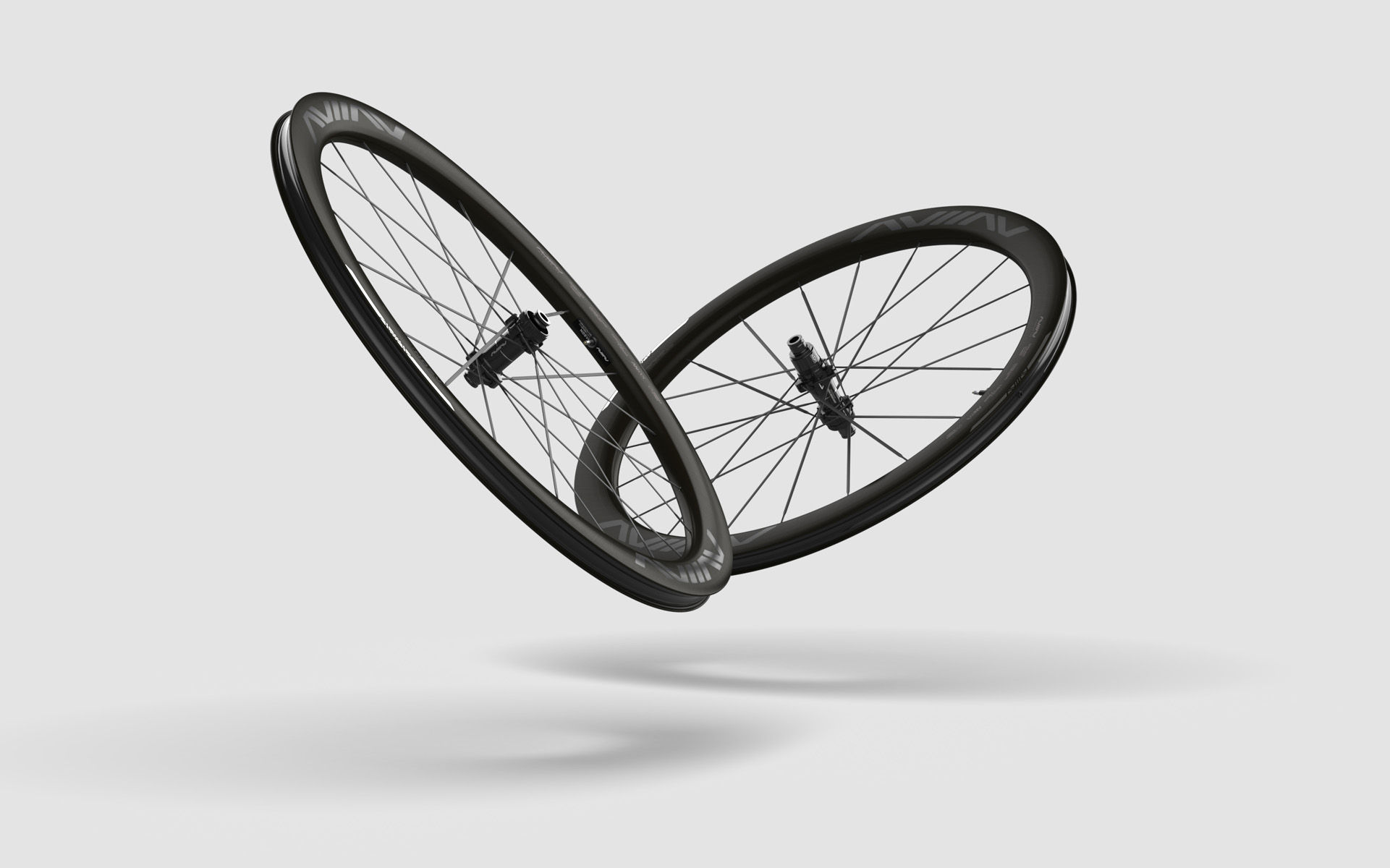

Lightweight carbon wheels with a toroidal shape designed through aerodynamic optimization.
ULTRA LIGHT
CARBON RIM
The combination of AVIIAV one-piece carbon layup technology and Toray's T800 carbon fiber made it possible to produce the lightest yet extremely strong rim.

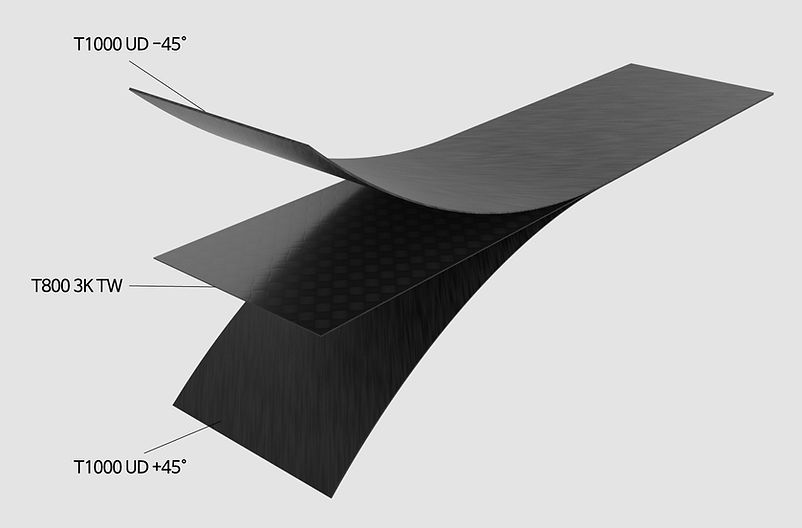

ONE-PIECE
CARBON
LAYING-UP
By using a special method of covering the entire rim with a single carbon sheet instead of cutting it into several sheets, it was possible to reduce the weight while increasing the strength of the rim.
INERTIA REDUCE
Compared to other lightweight wheels with a similar profile, the center of inertial mass of AEON wheels is closer to the center of the hub, allowing light rotation like a low profile rim.
12%
The ratio compared to a typical 50mm wheel of similar weight.
At the last moment, One cassette cog left.
If you are with Aon Wheels, you will find a sprocket cog that remains until the last moment of uphill.
Wide
Width
Profile
Rim width: 28mm
Bead width: 21mm
Rim height: 50mm
Replacable
Carbon
Spoke
We used replaceable aero carbon spokes that show greater stiffness and elasticity harmony. The carbon spokes are improved dramatically the fixation between carbon and alloy parts by using mechenical and chemical bonding.
We use ANSYS CFD software for analysis.
AEON rim section was designed based on the results verified through Fluid Mechanic Analysis using ANSYS® CFD software, which is the most reliable among CA software, and was made into an optimal shape by calculating various wind effects.
Shiny, But Tough!
Our ultra-high pressure forming and on-mold layup technologies create a smooth surface that is as smooth as a coating on the rim surface removed directly from the mold. This is one of the biggest differences with low-end carbon rims. In addition, it does not do a rim surface sanding or painting after molding. As a result, the surface of the AEON rim is extremely resistant to scratches that may occur during use, and it has a surface that does not change even after a long period of use.
Tubular
1146g
front+rear wheels only / XDR body
Clincher/TLR
1244g
front+rear wheels only / XDR body
Don't chase
Other's back

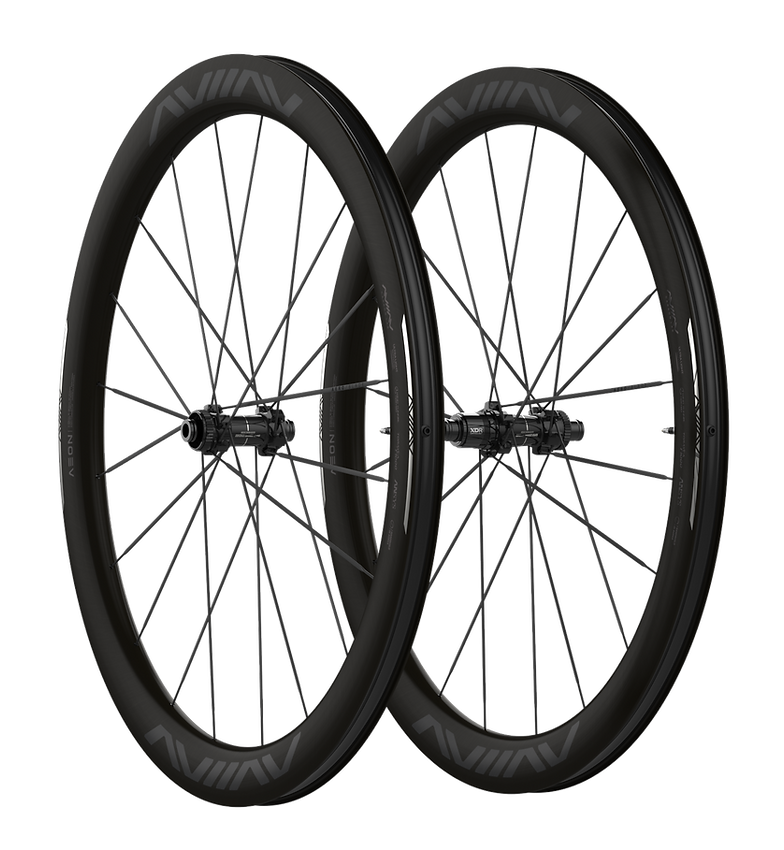

Equipped with light weight, excellent responsiveness, and smooth driving, AEON is a pro-level all-around wheels that can be used in any race.
PRE-MADE
Spoke holes

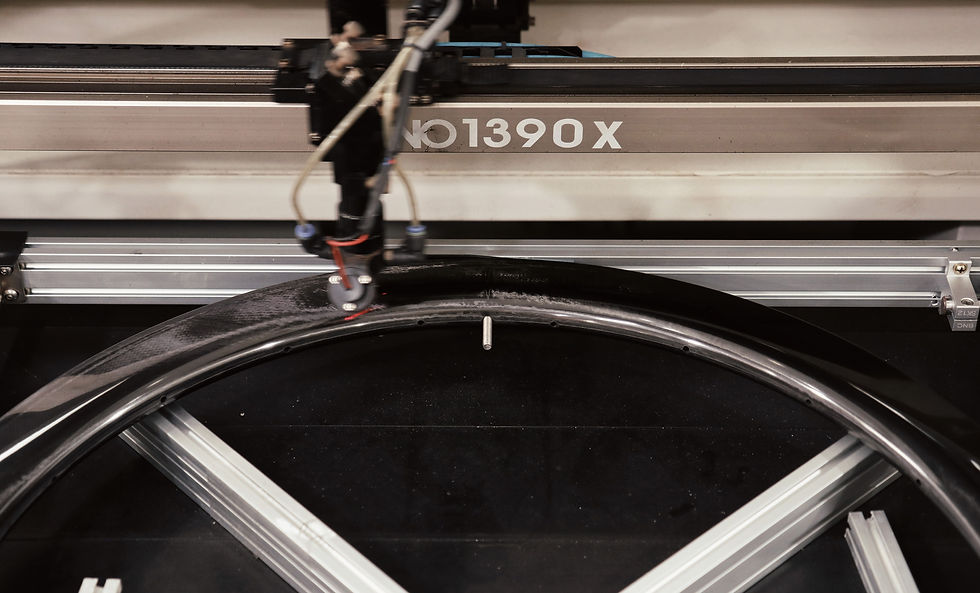

Through a patented process that makes spoke holes from the rim forming stage, It was possible to create a more durable rim by preventing the loss of strength due to the breakage of the carbon yarn that occurs during the existing drilling process, and by matching the hole to the angle and position where the tension of the spokes occurs, unnecessary stress on the carbon rim was minimized (patent no. 10-2482086).
MADE
IN
KOREA
AEON RIMS ARE PRODUCED DIRECTLY AT THE KOREA, NOT COMMON OEM PRODUCTS. IT IS DEVELOPED AND MADE WITH AVIIAV'S OWN TECHNOLOGY.
ON-MOLD
LAY UP
AEON RIM IS MADE BY DIRECT ON-MOLD LAYUP, WHICH IS MADE BY LAMINATING CARBON DIRECTLY ON TOP OF THE MOLD. THIS ENSURES EXCELLENT RIM FINISH QUALITY AT THE EXPENSE OF PRODUCTIVITY.
WE RECEIVE CARBON DIRECTLY FROM TORAY ADVANCED MATERIALS (FORMERLY SK CARBON) TO PRODUCE RIMS, AND AVIIAV AEON MANUFACTURES RIMS USING 100% GENUINE TORAY CARBON.
TUBULAR
MSRP $2,499.00
RIM SIZE
CARBON FIBER
RIM DEPTH
RIM WIDTH
WEIGHT(set)
FINISH
HUB
COMPATIBLE CASSETTE
AEON 50 TUBULAR
TORAY AUTHENTIC T800 CARBON UD+3K
50mm
28mm(max) / 21mm(internal)
1146g (±3%)
UD CARBON / GLOSSY
AVIIAV SUPER CERAMIC SYNCHRO / CLUTCH RATCHET SYSTEM 36T
SHIMANO 11,12 / CAMPY 11,12 / SRAM 12 XDR
SPOKE
SPOKE TENSION
SPOKE PATTERN
RIDER WEIGHT LIMIT
COMPATIBLE TIRE SIZE
ROTOR
LOCK-RING
WHEEL BAG
STRAIGHT-PULL AERO CARBON SPOKE
FRONT 1000-1200N / REAR 1000-1200N
FRONT 2-CROSS / REAR 2-CROSS
UNDER 110kg (INCLUDE BIKE)
622x24c to 622x32c (622x26c~28c BEST)
CENTER-LOCK ROTOR TYPE
INCLUDED
INCLUDED
MADE IN KOREA
CLINCHER/TLR
MSRP $2,499.00
RIM SIZE
CARBON FIBER
RIM DEPTH
RIM WIDTH
WEIGHT(set)
FINISH
HUB
COMPATIBLE CASSETTE
AEON 50 CLINCHER / TUBELESS READY
TORAY AUTHENTIC T800 CARBON UD+3K
50mm
28mm(max) / 21mm(internal)
1244g (±3%)
UD CARBON / GLOSSY
AVIIAV SUPER CERAMIC SYNCHRO / CLUTCH RATCHET SYSTEM 36T
SHIMANO 11,12 / CAMPY 11,12 / SRAM 12 XDR
SPOKE
SPOKE TENSION
SPOKE PATTERN
RIDER WEIGHT LIMIT
COMPATIBLE TIRE SIZE
ROTOR
LOCK-RING
TUBELESS KIT
WHEEL BAG
STRAIGHT-PULL AERO CARBON SPOKE
FRONT 1000-1200N / REAR 1000-1200N
FRONT 2-CROSS / REAR 2-CROSS
UNDER 110kg (INCLUDE BIKE)
622x24c to 622x32c (622x26c~28c BEST)
CENTER-LOCK ROTOR TYPE
INCLUDED
INSTALLED
INCLUDED
MADE IN KOREA
*AVIIAV logo and mark are registered trademarks, and unauthorized use may result in civil and criminal penalties.
*There may be slight differences in color or reflective surface between the image on the monitor and the actual product.
*Due to the nature of UD, colors such as lines or dots may appear on the surface. This is a normal product feature.
*This is a feature that appears under specific experimental conditions, and performance in actual use may vary depending on the rider's proficiency, frame used together, and drivetrain.
*This wheelset is a product used for racing bicycles, and the durability or stability of the product cannot be guaranteed if the use or composition is used differently from the product's intended purpose.
*Please refer to the homepage of the head office for the basic warranty of the product.
*The patent is currently pending, and the patent number will be notified when the application is completed.
